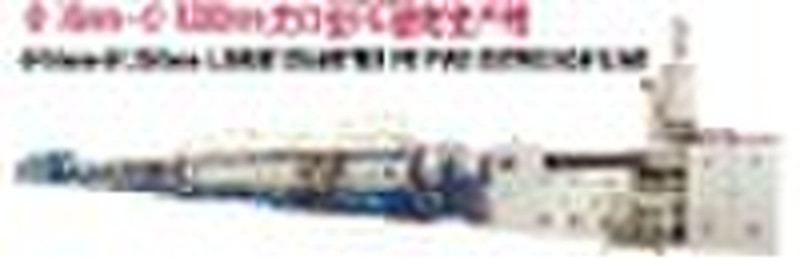

plastic pipe machine

Feature: The screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plasticization and mixing effect. Special design of basket die head for HDPE(PP,ABS) large diameter pipe with thick wall offer lower melting temperature, good mixing, lower pressure of cavity, and stable production. Special design for sizing and cooling system by using film and water ring to cool HDPE(PP,ABS) material, which can fit for the requirement of HDPE(PP,ABS). And the design can ensure the stability of diameter and roundness when producing the pipe with thick wall. Special design vacuum sizing tank can ensure the stability of size and roundness. Speed controllers are used in extruder, haul-off to offer stability and precision. The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line. Function: PE pipe production line mainly for production of PE water supply pipe, PE gas supply pipe, drain pipe etc… Main Technical Parameter: Model Pipe Diameter Range(ID) Extruder Max Capacity(kg/h) Power(kw) PE63 20-63mm SJ60/33 150 160 PE110 20-110mm SJ60/33 150 160 PE160 50-160mm SJ75/33 350 235 PE250 75-250mm SJ75/33 350 255 PE315 90-315mm SJ75/33 350 270 PE450 160-450mm SJ90/33 550 320 PE630 315-630mm SJ120/33 850 570 PE800 400-800mm SJ120/33 850 608 PE1000 630-1000mm SJ150/33 1300 750 PE1200 710-1200mm SJ150-33 1300 800
